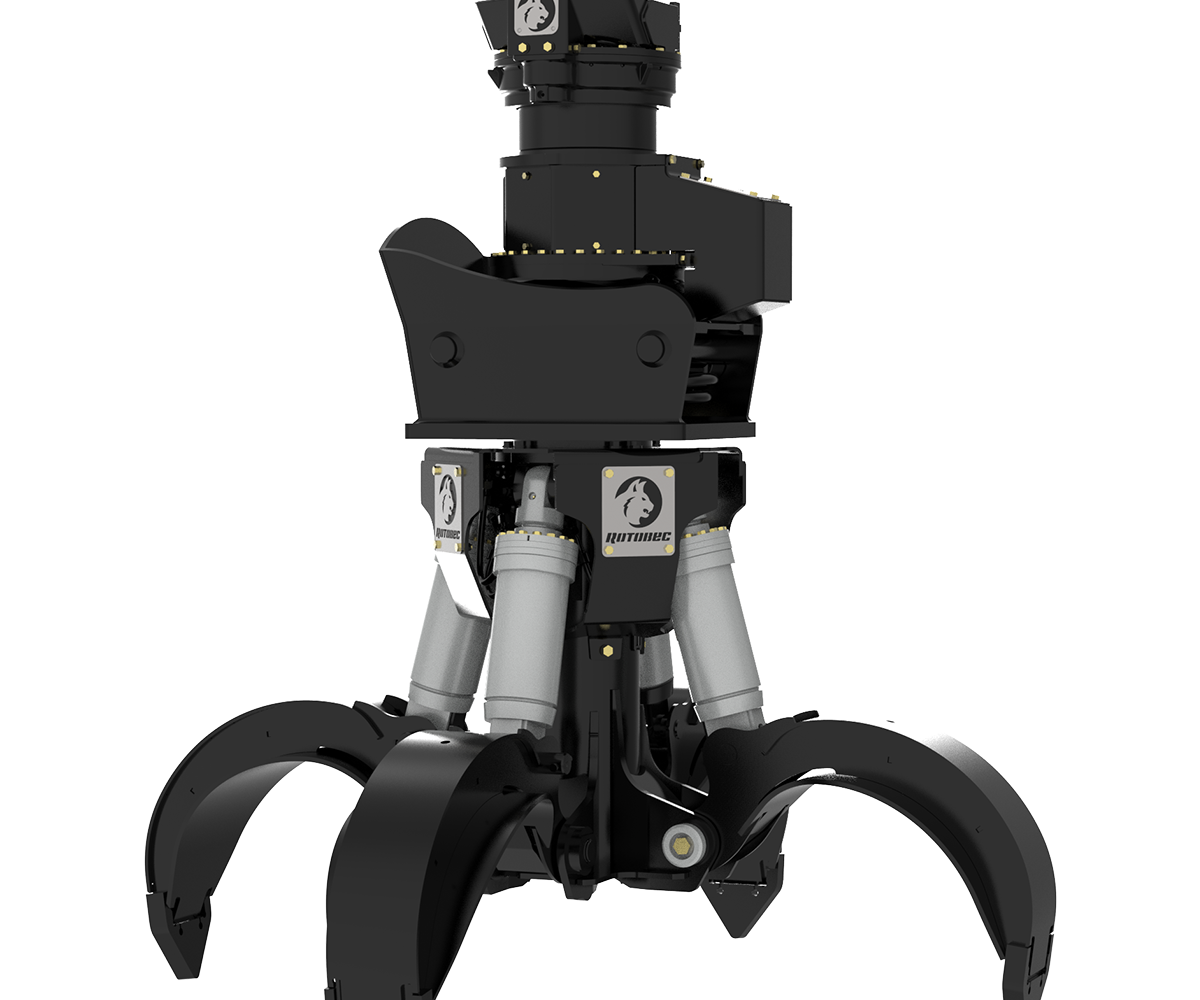

OQC 70/55-R35
The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on material handlers with lifting capacity up to 35 metric tonnes.
Why OQC?
- Hydraulic cylinder with double hose rupture valves. Full system pressure continuously applied to the locking bolts ensures that the attachments are locked securely in place without any play.
- Robust quick coupler made of high-grade steel.
- Wear-free OilQuick tool adapter.
- It only takes one cylinder movement to connect the hydraulic circuits automatically and lock the tools mechanically.
OQC 70/55-R35
Imperial
Metric
| Rotator | Weight | Max. lift capacity | |
| Coupler | Rotator | ||
| RT1204 | 757 kg | 757 kg | 35 t |
| Max. no. of couplings | Electrical couplings | Max. operating pressure | ||
| 1" | 3/4" | High power 100A | Control power 24 V | |
| 2 | 1 | Option | Option | 345 bar |
| Rotator | Weight | Max. lift capacity | |
| Coupler | Rotator | ||
| RT1204 | 1670 Lbs | 1670 Lbs | 35 t |
| Max. no. of couplings | Electrical couplings | Max. operating pressure | ||
| 1" | 3/4" | High power 100A | Control power 24 V | |
| 2 | 1 | Option | Option | 5000 Psi |
OQC 70/55-R35
Imperial
Metric
| A | 650 mm |
| B | 551 mm |
| C | 780 mm |
| D | 1306 mm |
| E | 1072 mm |
| A | 25.6" |
| B | 21.8" |
| C | 30.7" |
| D | 51.4" |
| E | 42.2" |
